rohs compliant SlimPRO SP685H
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



SlimPro SeriesMini PC Mini PC with PCI slot - SlimPro SP685H

Mini PC with PCI slot - SlimPro SP685H

Mini PC with PCI slot - SlimPro SP685H is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 4th generation Intel® Core™ i7 (Haswell) engine running with 15% enhanced productivity than former generation, Intel® Q87 chipset, dual channel DDR3 memory at 1600MHz, up to 16GB. Advanced Intel® HD Graphics 4600 supports DVI to VGA, DVI-I, DisplayPort interfaces, up to 2 independent 1080P displays. It is delivering leading performance, trusted rugged reliability and compact integration.

Mini PC with PCI slot - SlimPro SP685H is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC
  SP685H Mini PC
4th Generation Intel® (Haswell)

4 x USB 3.0
Display Ports

PCI Slot
Small Form Factor Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • Intel Q87 core logic
  • Support the 4th generation Intel FCLGA1150 low power CPU
  • Support SODIMM DDR3 1333/1600Mhz 8GB * 2
  • On-board gigabit LAN and 4 x USB 3.0 ports
  • PCI Slot
    Max Card Dimension: 4.2"(H)x9.75"(D)
  • On-board DVI-I and Display Port
  • Optional dual mini-PCIe slots support one full size and one half size mini card
  • Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)
  • Support SATA slim optical disk drive
  • Power in: DC 12V/84W

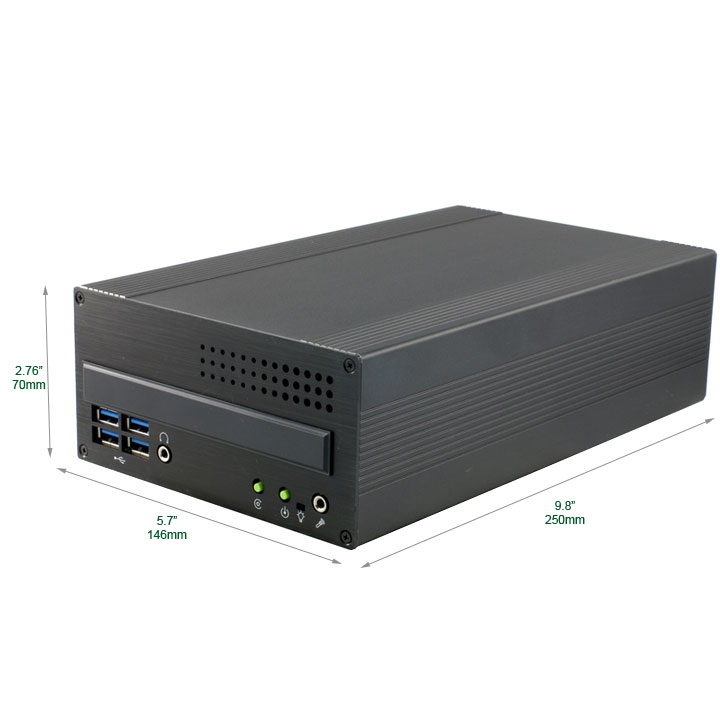

  • Dimension 5.7"(W) x 9.8"(D) x 2.76"(H) (W146mm x L250mm x H70mm)
Related Products
i7 wide extended temperature mini pc computer

Mica Ultra Thin Industrial Fanless Mini PC
Built-in Dual NIC
Desktop Haswell (4th Gen. i7 CPU)

Read More
i7 small mini pc computer

SP675 Series Small Industrial Fanless Mini PC

Add-ons Dual NIC
Mobile Ivy Bridge (3rd Gen. i7)

Read More

Numi 210F Industrial Mini PC ( Fanless Mini PC)
Numi 210F BayTrail 2xLAN / 4xCOM Ports Low Power Mini PC
Built-in Dual NIC
Intel Atom BayTrail I-E3845

Read More
i7 wide extended temperature mini pc computer

Echo 77FE
(Industrial Fanless Mini PC)
PCI-E x 16

Built-in Dual NIC
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended voltage mini pc computer

Echo 77-PoE+ ( Fanless Mini PC Industrial)
Wide Voltage
(6-36V)

Built-in Dual NIC
Mobile IvyBridge (3rd Gen. i7)

Read More
3 x VGA 3 x COM Ports Mini PC

Latte Q87 Industrial
Small Computer

Dual NIC
Budget i7 LGA1150 (Haswell) Solution.

Read More

Digital Engine DE3250 (Fanless Mini Industrial PC)
Digital Engine DE3250 2x Gigabit Ethernet / 2x HDMI Fanless Mini PC
Ultra Small Computer
Built-in Dual NIC
Intel N2930 CPU

Read More
i7 fanless mini pc computer with PCI Express Slot

Twister Series (Fanless Mini Industrial PC)
(PCI-e x1 Slot)
(PCI slot)

Built-in Dual NIC
Mobile IvyBridge (3rd Gen. i7)

Read More


spacer
SlimPRO SP685H
To Customize a Complete System.  Black     Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Mini PC with PCI slot SlimPro SP685H
Specifications

System
Processor Quad Core 4th Generation/ Intel® Core™ LGA1150 low power CPU (Desktop Type)
Chipset Intel® Q87
BIOS Insyde UEFI BIOS
Memory 2 x DDR3 1600MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232, Optional 2nd COM
USB
- 6 x USB 3.0 (External)
Video
- DVI-D (Digital and Analog)
- Display Port
PS/2 - PS/2 Mouse and Keyboard Ports
LED Power, HDD
Expansion
Mini PCIe
Mini PCIe Socket :
- 1 Full-size for PCIe/ USB
- 1 Half-size for PCIe/ USB
Slots
PCI Slot
Graphics
Graphics Processor - Intel® HD Graphics 4600
Interface
- DVI to VGA : Up to 1920 x 1200 @ 60Hz
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 30Hz
Storage
SATA
2 SATA III (6Gbps)
Storage Device
- 2 x 2.5" SSD/ HDD Bracket (Internal)
2nd SSD/HDD Slot shared with optical drive
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1 Intel® I217LM Gigabit LAN
Power
Power Input Voltage 12V, DC-in
Power Adapter Input universal AC 100~240V; Output DC 12V/84W
Others
Smart Management Wake on LAN, PXE supported
HW Monitor CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H) 146mm x 250mm x 70mm (5.7” x 9.8” x 2.76”)
Weight 2.4 kg (5.3 lb)
Mounting
- Optional U-Shape mounting bracket
- Optional Dual VESA mounting Bracket
- Optional Sliding Style Mounting Bracket
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
Linux Ubuntu 14.04
Environment
Operating Temperature
0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
