rohs compliant Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo Seriesx16 PCIe Slot Mini PC Numi 76EF Fanless PC

Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot

Numi is a Fanless Mini-PC Computer feature 3rd Generation i3/i5/i7 Prcoessor (Ivy Bridge) to deliver high-end computing ability for demanding applications. And 5 x Gb LANs, 2 x COM Ports, x16 PCI Express Slot are perfect for Machine Vision, Manufacturing, Intelligent Automation applications.
Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot
   Numi 76EF Mini PC
3rd Gen i3/i5/i7 Small Mini Computer

5 x Gb LANs
 2 x COM Ports

  PCIe x16 Expansion Slot
   Low Power Consumption PC
    Core™ 3rd Gen i3/i5/i7 Small Computer
Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot


Features

  • Intel 3rd Generation i7,i5,i3 CPU (Ivy Bridge)
  • Intel HM76 Chipset
  • 2 x DDR3 SO-DIMM.
  • 4 x USB 3.0, 4 x USB 2.0
  • 5 x Gigabit LAN onboard
  • Fanless Mini PC with Removable PCIe x16 Slot(8 Lanes)
  • 3 Display Support: DVI-D/ DVI-I, & VGA
  • 2 x COM Ports
  • 1 x SATA III (6Gbps) 2.5" SSD / HDD, mSATA
  • Wide Voltage input 8~25V
  • Optional Wifi & Bluetooth
Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot

Innovative Expansion Cassette

Providing an expansion slot inside a fanless controller is easy, but the real challenge is to deal with the heat generated by add-on card. That's why we invent our patent x16 Mini PCIe expansion Cassette (8 Lanes) for Numi 76EF i7 Fanless Mini PC. By creating an isolated chamber to accommodate add-on card separately, Numi 76EF i7 Fanless Mini PC can effectively minimize the thermal interference and maintain system stability. Additional thermal solution, such as customized heat-spreader, can be applied inside x16 Mini PCIe Cassette to realize a truly rugged fanless system with diversified add-on cards.

Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot

Optional Intelligent ignition power control for vehicle application

A common requirement for in-vehicle applications is to correlate system on/off with vehicle ignition signal and predefined delay. Numi 76EF i7 Fanless Mini PC features a SoC-based implementation that monitors the ignition signal and reacts to turn on/off the system according to predefined on/off delay. Its built-in algorithm for further features such as ultra-low standby power, battery-low protection, system hard-off and etc.

Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot

Versatile I/O functions

Numi 76EF i7 Fanless Mini PC has plenty of I/O functions to meet arbitrary application requirements. Its Gigabit Ethernet ports and USB 3.0 ports provide high-bandwidth data connectivity, while its triple independent display outputs provide benefits for image-related applications. There are two internal mini-PCIe slots for expanding WIFI/3G capability. We also offer the option of isolated DIO which Change-of-State interrupt and is very useful for industrial usage.

Related Products
i7 wide extended temperature mini pc computer

Expando Duo IE16(x16 and PCI Slot) Mini PC
x16 Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

Echo 236FE(x16 PCIe Slot) Mini PC
x16 Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 77FE(x16 PCIe Slot) Mini PC
x16 Expansion Slot
3rd Gen Intel® Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More
i7 wide extended temperature mini pc computer

Numi 76EF(x16 PCIe Slot) Mini PC
x16 Expansion Slot
3rd and 2nd Gen Intel Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More


spacer
Numi 76EF
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot Specifications
Processor

Intel 3rd Gen i7,i5,i3 (Formerly Ivy Bridge)

Chipset

Intel® HM76 Chipset

System Memory

2 x DDR3 SO-DIMM up to 16GB, Dual Channel

Audio

Realtek ALC892 6 Channel HD Audio

Storage

1 x 2.5" SATA Hard disk, CF Disk or SSD drive

LAN

5 x Intel® i210 Gigabit LAN
PXE Boot
Wake on LAN

Front I/O

1 x Power Button
1 x PS/2 Port
1 x CFast Slot
1 x VGA
1 x DVI-D (digital only)
1 x DVI-I (Digital and Analog)
1 x Gigabit LAN
4 x USB 3.0 ports
4 x USB 2.0 ports
1 x MIC
1 x Line Out

Back I/O

1 x DC 8-25V Jack
1 x DC 3-pins Terminal Block
2 x COM Ports
4 x Gigabit LAN
Removable x16 PCI Express Slot(8-lanes)

Optional Features

Optional Mini PCI Express TV tuner
Optional Wifi
Optional Bluetooth

Expansion

Removable x16 PCI Express 2.0 Slot
(8-lanes maximum 4GB/s bandwidth)
Max Card Dimension:
4.2"(H) x 7.9"(D)

2 x Mini PCIe Slot (Full Size)
1 x SIM Slot

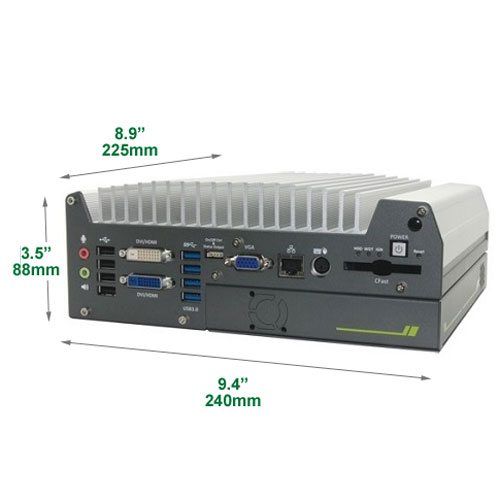

Dimension & Weight

9.4" (W) x 8.9" (D) x 3.5" (H)
240mm (W) x 225mm (D) x 88 mm (H)
7.7 lb. Fully Loaded

Power Management

Watch Dog Timer Available

Operating,
Storage Temperature

Operating Temperature:
0 ~ 40°C with Hard Disk
0 ~ 60°C with SSD
-25 ~ 60°C with Wide Temperature Memory and SSD

Storage Temperature: -20 to 85°C

Power Supply

External 110~240V AC-DC Adapter 2-pin 12V DC@10A 120W
Power Loss Resume feature available

Mounting

L Shape Mounting Bracket Included

Vibration Resistance

Operating, 5 Grms, 5-500Hz, 3 Axes
(w/ SSD, According to IEC60068-2-64)

OS

Windows 8.1 (x86, x64)
Windows 7 (x86, x64)
Windows XP

Resolution

HDTV 1080p, HDCP
16:9 Resolution

DB-15 VGA / 1920 x 1200 Max.
DVI-D / 1920 x 1200 Max.
DVI-I / 1920 x 1200 Max.
3 Multiple Display Max.
