The P1900 is designed to provide safe, reliable power to today's newest car pcs. The P1290 accept battery input as low as 7 volts under full load during cranking while providing a well-regulated output so that your car pc does not crash.
The P1900 provides two outputs. The primary output is jumper selectable for 18V, 19V, 20V operation and can provide up to 6.32 amps (125 watts @ 20V). The second ouput is jumper selectable to provide either +12V to power your LCD screen (or 13.5V or experimental purposes), or +5V to power USB devices with up to 3 amps (15 watts). The P1900 can accept battery input as low as 7 volts under full load (140 watts) during cranking while providing a well-regulated output so that your car pc does not crash.
The P1900 includes features such as Startup/Shutdown controller, Pulse Start (remotely start the P1900 with door locks, car alarm, or wireless device), and DelayON (prevents speaker "thump" during booting). The P1290 fully and safely supports "Standby" mode and will automatically shut itself down (by detecting excess current drain) if the car pc fails to properly go into Standby mode.
The P1900 is also designed to power larger systems that demand higher power, such as P4-based motherboards (ie Insight P4 ITX) with full sized hard drives. The P1900 is fully compatible with the Mini-ITX C137 (90 watt and 120 models), the Mini-ITX C138 (90 watt and 120 watt models) cases. No need to spend $100 more for other DC-DC PSUs that may not even handle the +12V rail power!
In addition, the P1900 can be used with our mini pc series that requires an 18v, 19v, or 20v power source.
Features
| Specifications |
| P1290 (90 Watts) |
P1900 (140 Watts) |
| 90 Watt Dual Output Regulator |
140 Watt Dual Output Regulator |
| Main output of +12V @ 6.3 Amps |
Jumper selectable main output of +18/+19/+20V |
| Second output of +5V @ 3 Amps |
Jumper selectable second output of +12/+13.5V or +5V |
| |
Add a 3rd output by installing the optional P5V +5/15 watt regulator |
| Survives Engine Cranking under full load over entire temperature range |
| Includes sophisticated Startup/Shutdown Controller |
| Includes sturdy aluminum chassis with variable speed fan suitable for car environment |
| Field upgradable flash microprocessor |
| Low battery monitor prevents drained battery, even during Standby/Sleep |
| "Anti Thump" delayed remote control for audio amplifiers |
| Remote "Pulse Start" from wireless device or car alarm/remote start system |

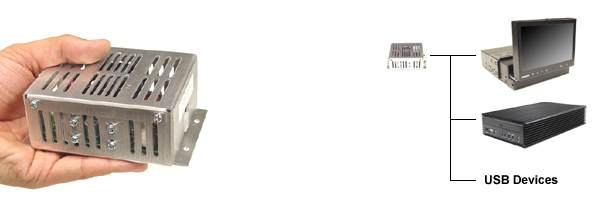

| Powers both your car pc and screen or USB devices |
| Full, safe support for Windows Standby mode including auto shutdown if PC fails to shutdown |
| Over voltage surge suppression on battery input for protection of harsh automotive environment |
| User replaceable fuse on battery input to protect your car from internal short circuits |
| Very compact design measuring 4.6" x 3.25" x 1.75" (LxWxH) or 177mm x 83mm x 45mm |
| Compatible with models |
| P1290 (90 Watts) |
P1900 (140 Watts) |
SlimPRO SP625
SlimPRO SP625 (Fanless)
SlimPRO SP615 (Fanless)
SlimPRO SP300
SlimPRO SP300 (Fanless)
SlimPRO SP320
SlimPRO SP350
SlimPRO SP620H (1 x PCI Slot)
SlimPRO E10000
|
SlimPRO SP620
Cappuccino EZ3
Cappuccino GX1
Mocha 7043
Mocha 7043 Junior
Pandora PC Mini |
|
|
